The GEP indoor grey water system is suitable for purifying water from the shower, sink and washing machine. After purification the water can be used for flushing the toilets or watering the garden.
The indoor grey water system consists of at least 3 tanks:
– a grey water tank (GWT)
– a membrane water tank (MWT);
– a clean water tank (CWT).
The indoor grey water system is available in 2000 L, 4000 L and 6000 L. Which can process 2000 l/day, 4000 l/day and 6000 l/day respectively. Expansion is done by adding additional tanks and extra membrane filter packages. Other volumes are available upon request. To use the purified water, a drain pump/pressure booster pump and a pressure vessel are required, as shown in the image. The dimensions of this system is different for each situation and is therefore subject to change. It is recommended to speak to a member of the team for clarification.
The system comes with a KIWA certified break connection for topping up the system with drinking water if there is insufficient supply greywater.
The function of each tank and the operation of the filter process are explained on the following pages.
Greywater system indoor 6000 L
Description
Information

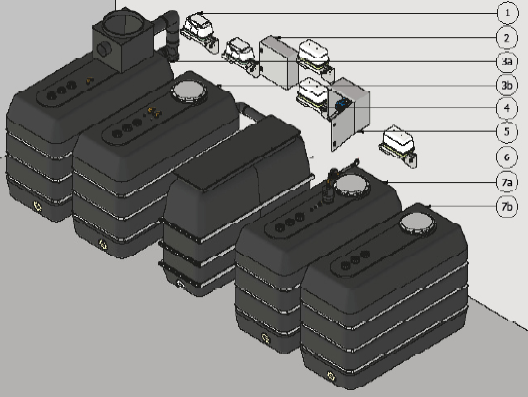

Please see figure below:
1 Compressor GWT (2x)
2 GWM Control
3a Grey water tank 1 (GWT) of 3000 L
3b Grey water tank 2 (GWT) of 3000 L
4 Compressor MWT (3x)
5 Membrane pump box
6 Membrane water tank (MWT) of 2000 L
7a Clean water tank 1 (CWT) of 3000 L
7b Clean water tank 2 (CWT) of 3000L
Installation dimensions
Total required width – 7546 mm
Total required depth – 2660 mm
Total required height – 2500 mm
A 600 mm
B 995 mm
C 200 mm
D 766 mm
E 430 mm
F 2230 mm
The installation space must be taken into account for the drain pump/pressure boosting pump and pressure vessel. The dimensions of this are project specific.
Order Details
Art nr – NAME (PG)
406146 – GWT 6000
406147 – MWT 6000
406148 – CWT 6000
406149 – Aerator set GWT per piece
Additional information
| Max capacity (l/min); | 6 l/min |
|---|---|
| Voltage (at 50 Hz, V): | 230 V |
| Currrent (A): | 6.9 A |
| Max. power (kW): | 1.6 kW |
| Influent diameter (mm): | 160 mm |
| Effluent diameter: | 1" |
| Overflow diameter (mm): | 160 mm |
Related products
-
The GWM Control ensures the control and monitoring of the grey water system. Each tank is equipped with analog and digital level sensors for increased operational reliability. The functioning of the membrane filter is continuously monitored by monitoring workload and flow. At a lack of filtered grey water, the control switches to temporary use of drinking water or rainwater. The control must be connected to the internet for online monitoring. The communication between the system and the DPT server takes place on basis of MQTT. The device page provides an overview of the current operating status. For the administrator, the system provides insight into the historical data for service and maintenance purposes. Water meters can also be provided to determine the efficiency of the system. Alarms can be transmitted to the BMS system via modbus communication. The system can also be connected to other GEP water management services
such as:
– GEP Rainwater Ditch: temporarily use rainwater instead of greywater to free up volume rainwater buffers for expected precipitation.
– GEP Regenerator: aquathermy from greywater as a source for GEP Regenerator systems.
– GEP APP: online page with current system data such as water levels and water usage. -
The GEP indoor grey water system is suitable for purifying water from the shower, sink and washing machine. After purification the water can be used for flushing the toilets or watering the garden.
The indoor grey water system consists of at least 3 tanks:
– a grey water tank (GWT)
– a membrane water tank (MWT);
– a clean water tank (CWT).
The indoor grey water system is available in 2000 L, 4000 L and 6000 L. Which can process 2000 l/day, 4000 l/day and 6000 l/day respectively. Expansion is done by adding additional tanks and extra membrane filter packages. Other volumes are available upon request. To use the purified water, a drain pump/pressure booster pump and a pressure vessel are required, as shown in the image. The dimensions of this system is different for each situation and is therefore subject to change. It is recommended to speak to a member of the team for clarification.
The system comes with a KIWA certified break connection for topping up the system with drinking water if there is insufficient supply greywater.
The function of each tank and the operation of the filter process are explained on the following pages. -
The grey water tank (GWT) collects the incoming grey water and buffers it for further processing. The grey water tank has a trident grey water pre-filter with automatic filter
cleaning. The pre-filtered water enters the tank through a quiet supply. The aerator ensures that dirt is pushed up through the skimmer overflow and leaves the tank. Settled dirt should be cleaned once a year. The pre-filtered water is pumped to the membrane water tank via a submersible pump (WW 2/20) with a fixed height. At low levels in the grey water tank, the filter pump is stopped to prevent dry running. -
