Product advantages
• high water quality, increases oxygen level
• protects pump, no re-suspension of sediment
• socover mounting base with dilated outflow
• full-flow
• ready-to-use componentProduct specifications
Gentle supply prevents re-suspension of the sediments in the tank, due to which a biological balance of the water is safeguarded. Complies with DIN 1986 coupling connection: DN 110 Material: recyclable black PE -

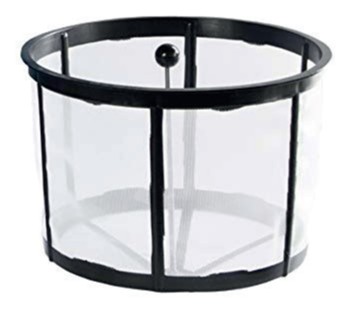

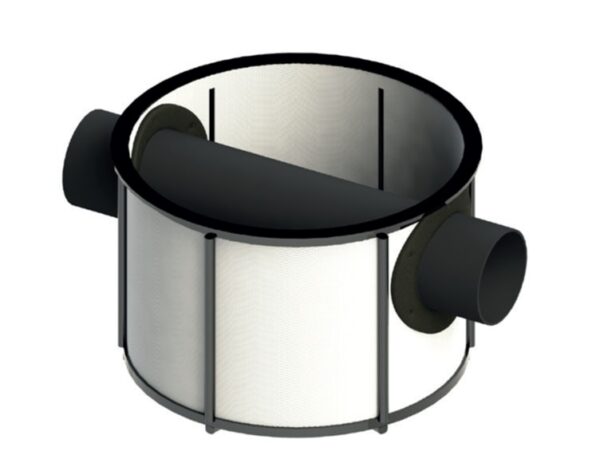

A basket filter consists of a simple basket made of fine-mesh plastic gauze. The filter basket is installed directly in the upper part or the extension piece of the rainwater tank, or optionally in an inspection chamber before the rainwater tank. This solution can be an interesting option for the renovation of an existing system.
Although the efficiency of the basket filter is technically 100%, it requires regular maintenance. If the basket becomes clogged, there is a risk of dirt entering the tank water. In addition, all debris remains in the basket, which does not benefit the quality of the filtered water. GEP supplies various types of basket filters.
-
A basket filter consists of a simple basket made of fine-mesh plastic gauze. The filter basket is installed directly in the upper part or the extension piece of the rainwater tank, or optionally in an inspection chamber before the rainwater tank. This solution can be an interesting option for the renovation of an existing system.
Although the efficiency of the basket filter is technically 100%, it requires regular maintenance. If the basket becomes clogged, there is a risk of dirt entering the tank water. In addition, all debris remains in the basket, which does not benefit the quality of the filtered water. GEP supplies various types of basket filters.
-
A basket filter consists of a simple basket made of fine-mesh plastic gauze. The filter basket is installed directly in the upper part or the extension piece of the rainwater tank, or optionally in an inspection chamber before the rainwater tank. This solution can be an interesting option for the renovation of an existing system.
Although the efficiency of the basket filter is technically 100%, it requires regular maintenance. If the basket becomes clogged, there is a risk of dirt entering the tank water. In addition, all debris remains in the basket, which does not benefit the quality of the filtered water. GEP supplies various types of basket filters.
-
Complete set for purpose of flexible floating intake in the tank. The set consists of a brass tank bushing with an extended screw thread to
safeguard proper fixation. The hose has a pressed coupling to prevent air being sucked in. The float is constructed of one piece to avoid leakage.
Available in models with 2 or 3 metres of hose. In addition, there are two types of intake cages; the Twist and the Saff.The Twist has a coarse mesh size of 1 mm and the Saff a fine mesh size of 0.44 mm. Basically the Twist is intended for rain water systems with a
Trident preliminary filter, while the Saff is intended for systems without preliminary filter. The special tank bushing with special flexible hose
prevents frictions, so that water tightness remains safeguarded, even after many years. -
The security between the drink water supply and the indoor water network is sometimes legally mandatory. The EN1717 provides a number of technical possibilities. Using water of safety class 5, such as rainwater, grey water, stagnant water, or water of unknown origin is a “free range” mandatory.

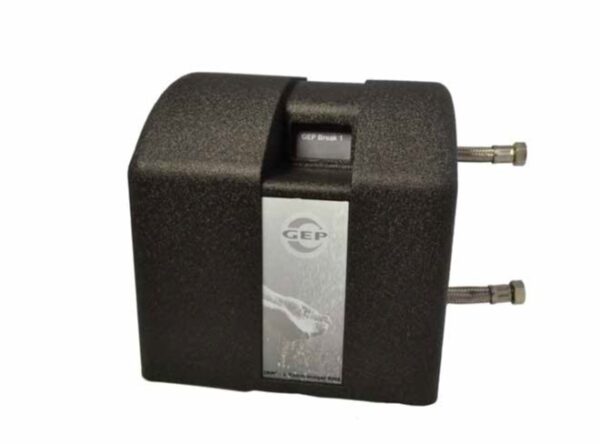

The Breaktank Break 1 by GEP is conform the EN1717 and has a type AB Break. Also, the Breaktank Break 1 is equipped with a silent prefab pump which ensures a continues water pressure for all connections. The Breaktank Break 1 is Belgaqua and KIWA certified.
-
The security between the drink water supply and the indoor water network is sometimes legally mandatory. The EN1717 provides a number of technical possibilities. Using water of safety class 5, such as rainwater, grey water, stagnant water, or water of unknown origin is a “free range” mandatory.

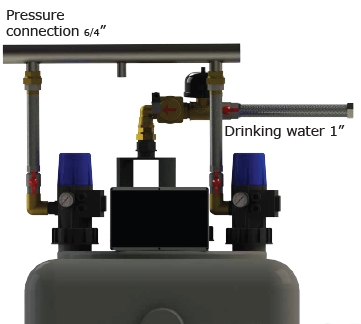

The Breaktank Break 10 by GEP is conform to EN1717 and has a type AA disconnection. This break tank is Belgaqua and KIWA certified. The Breaktanks Break 10 is equipped with 2 prefab installed pressure submersible pumps. These pumps are equipped with a pressure control so that pressure can be guaranteed on all disconnection points. -
The security between the drink water supply and the indoor water network is sometimes legally mandatory. The EN1717 provides a number of technical possibilities. Using water of safety class 5, such as rainwater, grey water, stagnant water, or water of unknown origin is a “free range” mandatory.

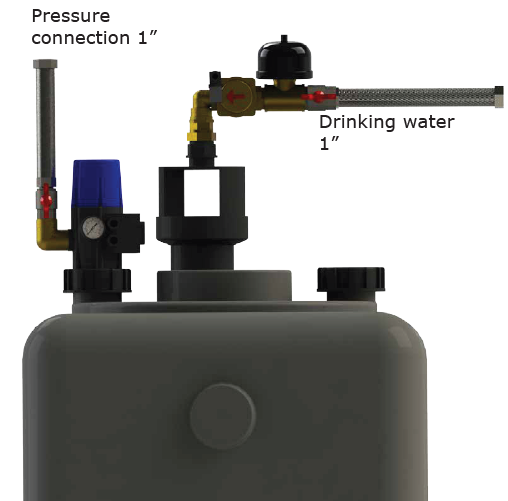

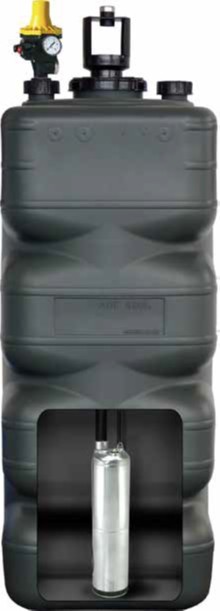

The Breaktank Break 7 by GEP is conform to EN1717 and has a type AA disconnection. This break tank is Belgaqua and KIWA certified. The Breaktanks Break 7 is equipped with a prefab installed pressure submersible pump. The pump has a pressure control so that pressure can be guaranteed on all disconnection points. -
The security between the drink water supply and the indoor water network is sometimes legally mandatory. The EN1717 provides a number of technical possibilities. Using water of safety class 5, such as rainwater, grey water, stagnant water, or water of unknown origin is a “free range” mandatory.

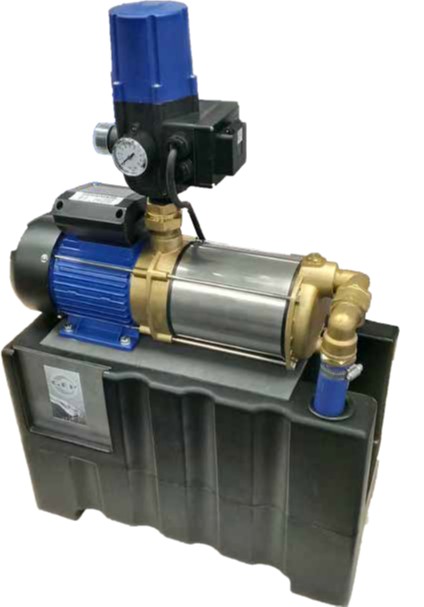

The Breaktank Breaky 3 & 5 by GEP are conform to EN1717 and have a type AA disconnection. These break tanks are Belgaqua and KIWA certified. The Breaktanks Breaky 3 & 5 are equipped with a prefab installed self-priming pump. The pump is a pressure control so that pressure can be guaranteed on all disconnection points. -

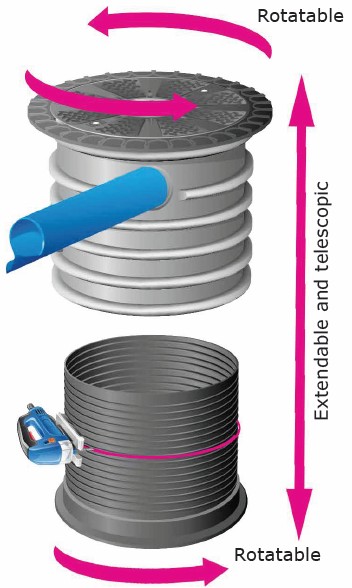

GEP has developed a unique filter shaft which applies to all plastic tanks but also to GEP concrete tanks. 15 years of experience has allowed GEP
to develop the unique Varitank filter shaft with the following features and advantages. -
Ready-to-use component in siphon form as an odour trap for the sewer. Siphon is applied extra deep to withstand dehydration. Sloping side of
siphon prevents vortex formation in the tank. Siphon is fitted with a flap made of inox, against rats. Complies with DIN 1986. The siphon is also
fitted with an electrical alarm unit in case of back flow from the sewer. This can be connected to IRM controls TEO, Rain manager and Hybrid.
Technical specifications. -
Varitank cover set around class D cast iron
Trident tank cover set round, class D cast iron. The cover set is entirely made of cast iron and provides a round frill with a hinged cover. The
round frill telescopically fits onto the Trident tank shaft and is perfectly suitable to be processed into in a tarmac layer, the complete
set is class D (heavy traffic) loadable. -
Varitank cover set round, garden cover with tap
Trident tank cover set round, garden cover with tap. The synthetic cover is loadable for light traffic up to 600 kg of wheel load. Is fitted with a small cover with a tap with connection for garden hose. Fitted with childproof fasteners, and anti-slip profile. Set includes 10 cm telescopic
shaft and grommet. -
Varitank cover set round, PE 600 kg wheel load taxable
Trident tank cover set round, PE 600 kg wheel load loadable. The synthetic cover is loadable for light traffic up to a wheel load of 600 kg. Cover is round and fitted with anti-slip profile. The cover is fitted with childproof fasteners. Is delivered including 10 cm telescopic shaft and grommet. -
Varitank cover set square class D400 + pressure distribution plate
Trident tank cover set square class D400 + pressure distribution plate. Round cast iron cover in square cover framework made of cast iron and concrete. Cover construction is traffic class D (heavy traffic) and fitted with an extra base frame made of concrete, which offer ultimate protection of the borehole against significant weight loads. -
Varitank cover set square PE class B traffic
Trident tank cover set square PE class B. Cover set is traffic class B (passenger car) loadable and fitted with anti-slip profile. The
cover is square and fits into a square framework. As such, the surrounding pavement can be applied quickly, easily and neatly. Is delivered
including 20 cm telescopic shaft and grommet.
