Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting

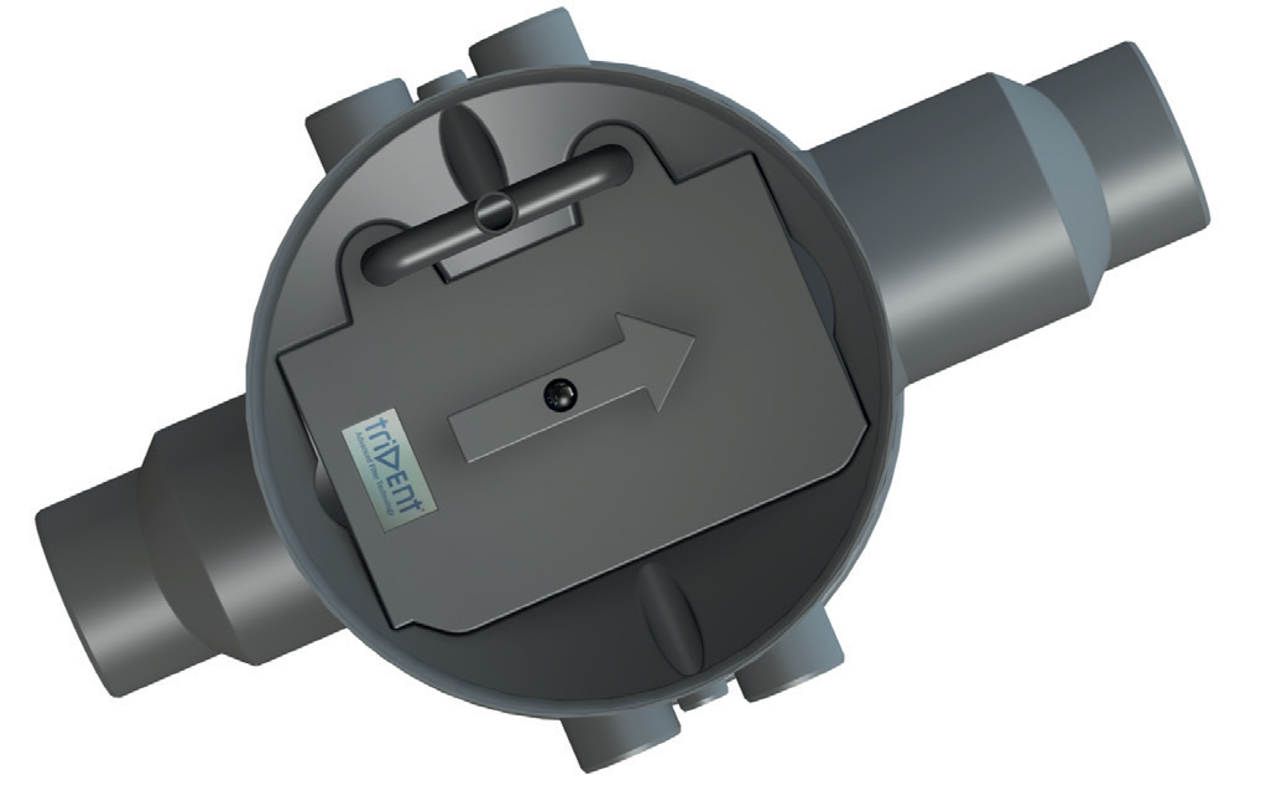

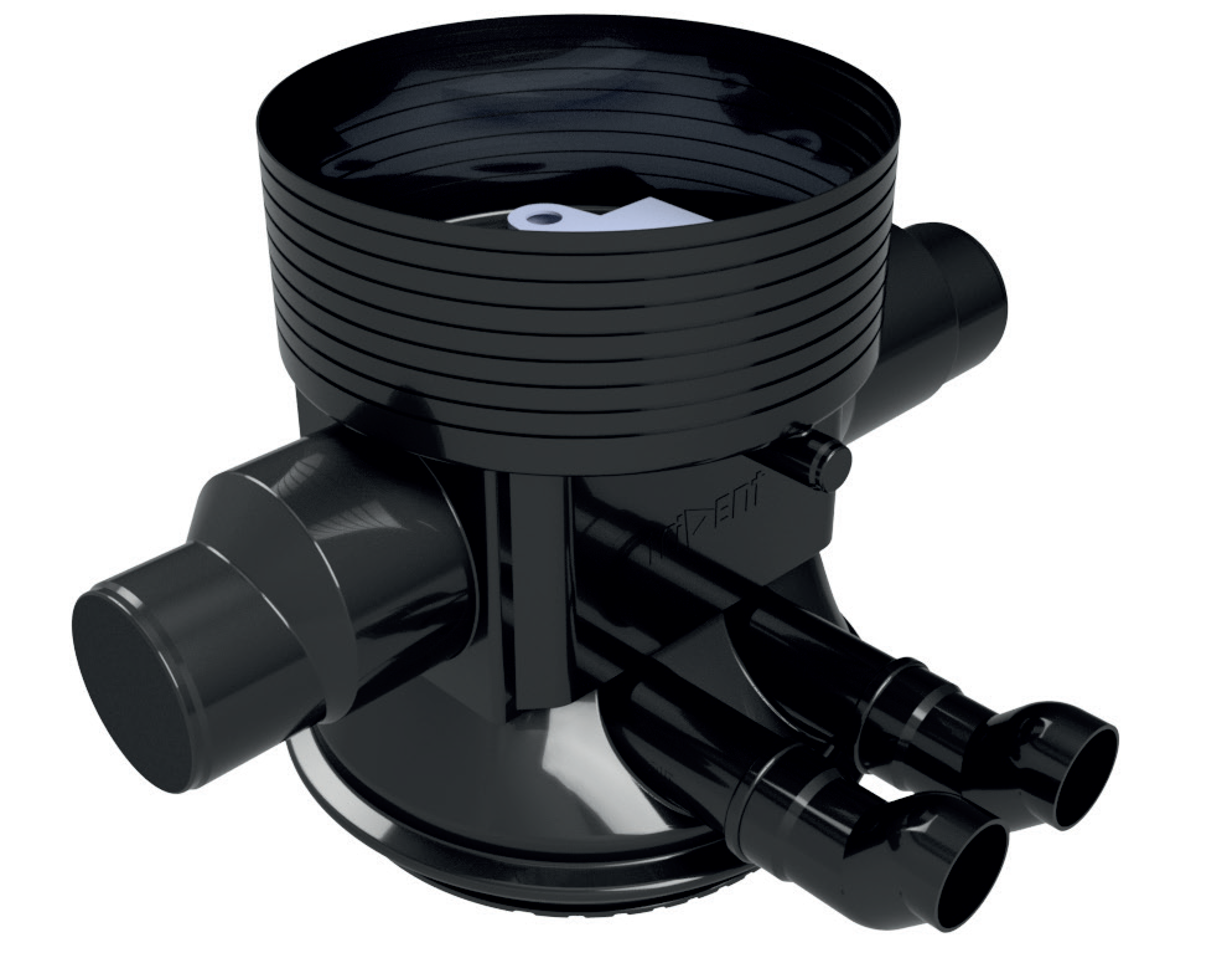

Trident 1.650m² filter for underground installation
Description
Application Area

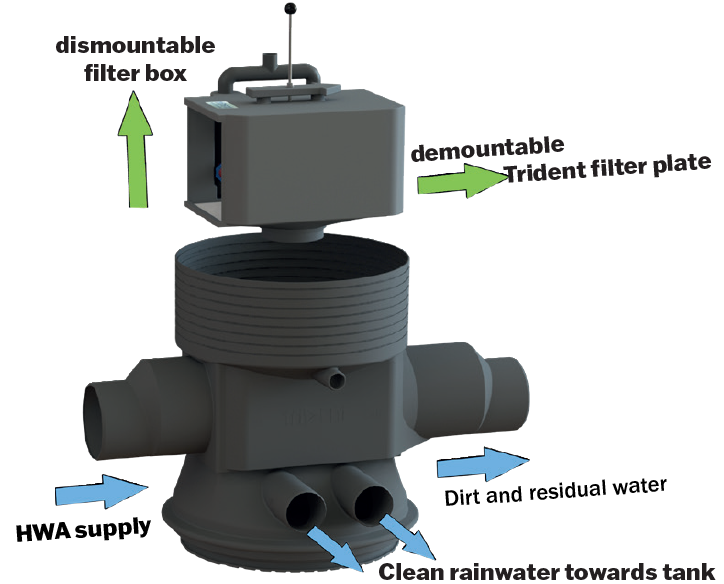

The Trident 1,650 rain water filters are intended to be placed in front of a tank or rain water borehole. The Trident rain water filters are suitable for filtering rain water from roofs of buildings with a roof surface up to 1,650 m2 (based on 300 litres/sec/ha). The filter shall be placed in front of a rain borehole and is resistant to soil pressure (traffic class A). Between the supply of rain water and the discharge of the filtered rain water, there is a decline of 12 cm. With the optional decline reductive part this is reduced to 6 cm.
Options
Trident 1.650 filter cleaner connectionset

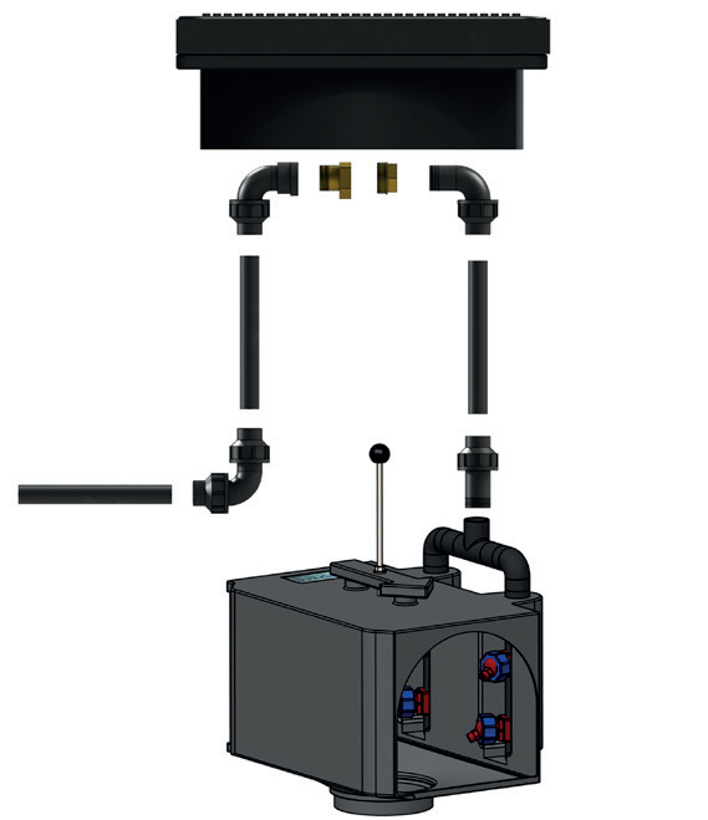

The filter cleaner connectionset consist of a PE mountingset for the connection between filter box and the filter shaft. The box remains removable.
Automatic time-controlled filter cleaner 1/2 ‘’
Time-controlled filter cleaner makes automatic filter cleaning possible. The nozzle sprays the filter surface at freely adjustable times clean.
Varitank inner shaft 60 cm
The shaft with seal ring can be mounted on the filter shaft. The shaft can be easaly shortened. In this way every Varitank cover can made on the desired height, equated to the ground level.
Removal bracket for filter box
The removal bracket for the filter box is the solution if the filter is fitterd far below ground level. Easy and fast removal of the filter box.
Decline reductive part DN 110
Decline reductive part reduces the height difference between supply and discharge filtered water from 12 cm to a mere 6 cm.
Varitank cover set
For every Varitank filter is a wide range of covers available in traffic class A, B en D. See the special Varitank cover pages to choose your suitable cover.
Technical Overview
Delivery

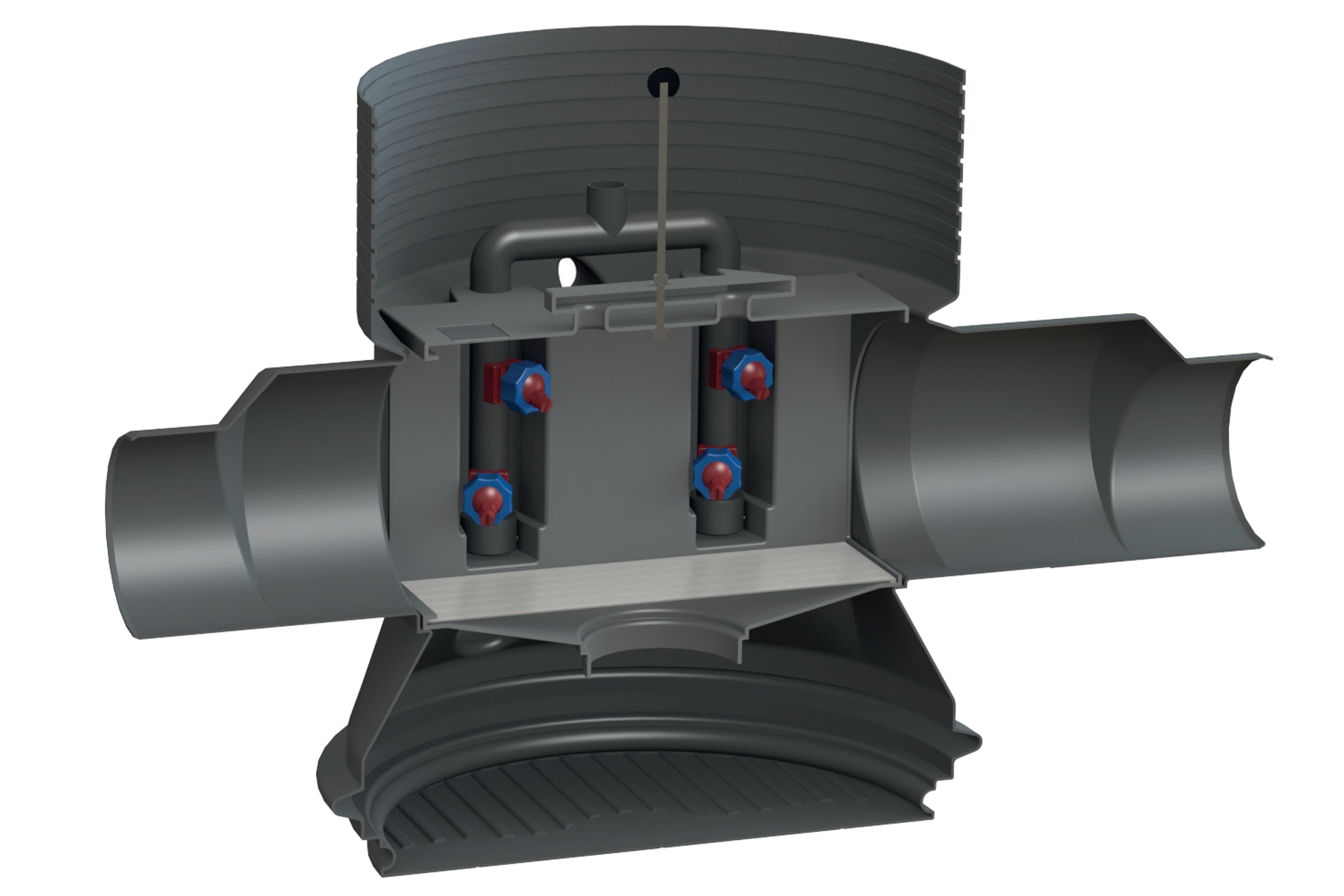

Product consist of: filter housing, filterbox, Trident filter grill, pre-mounted filter sprayers and installation instructions.
Order Details
Art nr – NAME (PG)
401212 – Trident 1.650 filter with filter box (4)
401213 – Trident 1.650 nozzle connection set (4)
401251 – Automatic time-controlled filter cleaner 1’’ (4)
403512 – Varitank inner shaft 60 cm (3)
401369 – Removal bracket for filter box (2)
401160 – Expiration of reduction piece DN 110 (2)
Wide range of covers available, see Varitank covers from GEP.
Additional information
| Weight | 16 kg |
|---|---|

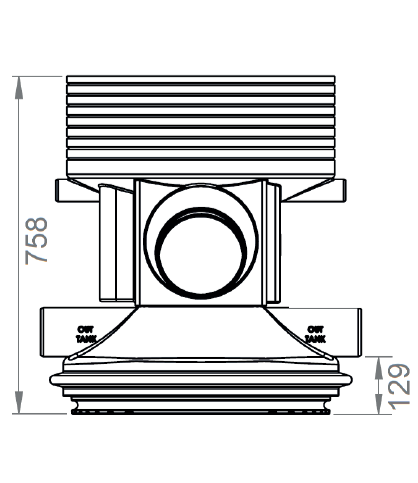

| Height in mm: | 758 mm |

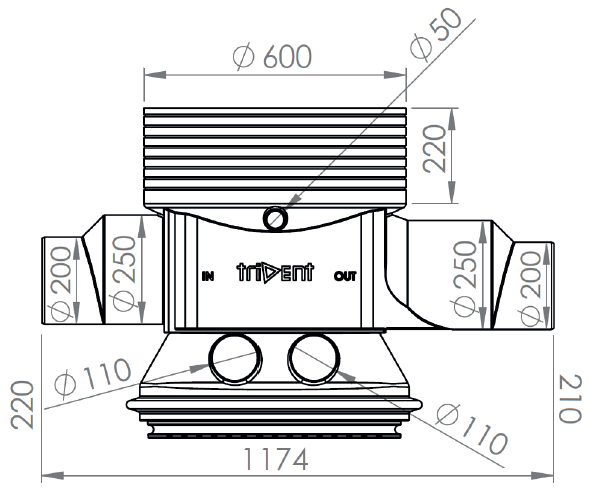

| Width in mm: | 1174 mm |
| Length in mm: | 760 mm |
| Imports in mm: | 200/250 mm |
| Waste dirt in mm: | 200/250 mm |
| Height difference of the supply in mm: | 12 mm |
| Drain clean in mm: | 2 x 110 mm |
| Sleeve pipe in mm: | 2 x 50 mm |
| Material housing: | PE |
| Material filter grid: | RVS |
| Connection filter cleaner (optional): | 1” |
Related products
-
Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting
-
Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting
-
Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting
-
GEP has developed a unique filter shaft; the ‘Trident tank filter shaft’. The filter shaft is applicable for all tanks made of plastic and concrete rain water boreholes of GEP. The concept is the result of 15 years of engineering, recruiting and practical experience. The unique Trident tank filter shaft of GEP has the following properties and advantages:
– The Trident tank filter shaft scoveres over the synthetic manhole of the tank or concrete pit and is mounted with rubber grommets to realise an optimal sealing. It is a simple and time-saving solution, making the
usage of kit, welds or mortar something of the past.
– The sawable and telescopic shafts will instantly prove to be beneficial! The laborious placing of and/or masonry work on a manhole is no longer required. These shafts can be sawn or raised in no time.
– In addition, the shaft can be rotated against the tank, due to which fewer connection pieces are required.
– The shafts are extendable with extra connections, that can be quickly and easily applied.
– The cover is, subsequently, telescopic compared to the inner shaft. This way the cover can be precisely equated to the ground level. This can also be done at a later stage of the construction, when ultimately the garden is being created. This again will save you some fitting pieces, thus time and money.
– The cover set is rotatable against the shaft and the tank. During finishing applying grouting in paving, the joints can thus always be followed perfectly. This can also be lightly tilted to realise a perfect finish on slopes.
In short: the ‘Trident tank filter shaft’ with accompanying covers offers a telescopic, rotatable and extendable option that can be shortened. The extensive assortment of fitting covers offers an “invisible” and childproof covering for any situation.
