IRM®-3/IRM-5 Watermanager

The IRM®-3 & 5 Watermanager is a plug-in, compact installation for rainwater use in single-family homes. The break tank for drinking water supply is in accordance with EN1717 type AB. Content 7 liters. The IRM®-3 & 5 Water Manager has a self-priming centrifugal pump (RC-3 or RC-5) with automatic pressure control. The motor-controlled ball valve provides for the switch between rainwater and drinking water operation.
Control provides an automatic drinking water refreshment system that regularly switches the system to drinking water. For example, the contents of the break tank are regularly updated and prevent the tap water in the drinking water pipe from being idle for too long. In the absence of rainwater, the system automatically switches to drinking water by means of the float with a 20 meter cable length. The IRM®-3 & 5 Watermanager
is equipped with a sound-proof EPP housing. The IRM®-3 & 5 Water Manager is suitable for wall mounting. The device is KIWA, Belgaqua and DVGW certified.

SKU: 402112 / 402113 Categories: ,

Description

Scope

The system can be used for the use of filtered rainwater for flushing toilets, connecting a washing machine and an outdoor tap. Also suitable
for continuous consumption such as sprinkling. The appliance is suitable for wall mounting.

Options

IRM® 3/5 water lock
If there is no Emergency overflow connection present, the device can be extended with a water seal, which closes the drinking water supply with a leaky drinking water valve.

Automatic time-controlled filter cleaner 1/2 “
Set consisting of: adjustable automatic timer, solenoid valve 1/2 “ including 1,5m cable and plug. Digital display.

Scope of delivery

IRM®-3 Watermanager / IRM®-5 Watermanager comes with: sound-insulating foam hood, flexible stainless steel hoses for connection of the drinking water, suction and pressure line including shut-off valves, float switch with 20 meter cable and cable clamp for tank mounting, power cord of 2 meter, wall bracket with fastening Material, rubber resonance strip and installation instructions.

Order Details

Art nr – NAME (PG)
402112 – IRM®-3 Watermanager (1)
402113 – IRM®-5 Watermanager (1)
402138 – Water lock IRM® 3/5 (1)
401155 – Automatic time-controlled filter cleaner 1/2 “ (2)

Additional information

Weight 33 kg
Height in mm:

596 mm
Width in mm:

662 mm
Depth in mm:

365 mm
Drinking water connection (D):

3/4"
Suction pipe (E):

1"
Pressure line F:

3/4"
Emergency overflow F in mm:

diameter 75
Volume breaktank in liter:

7 L

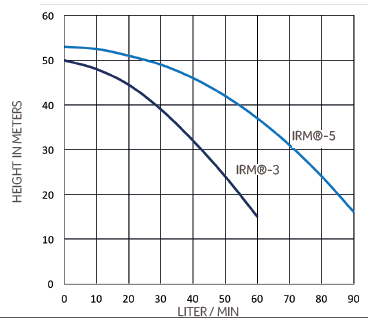

Max. debiet in liter/min

IRM-3: 60 L/min
IRM-5: 90 L/min
Max. Power in Watt:

IRM-3: 1.100 W
IRM-5: 1.350 W
Voltage in Volt:

230 V
Max head in m:

IRM-3: 50 m
IRM-5: 53 m
Number of impellers"

5
Condensator in μF:

IRM-3: 20
IRM-5: 25
