IRM®-9 Watermanager

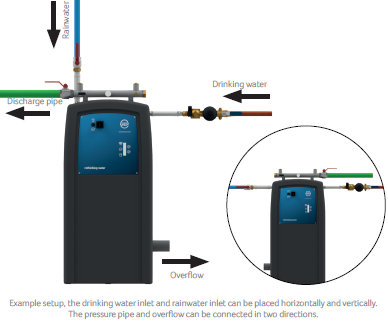

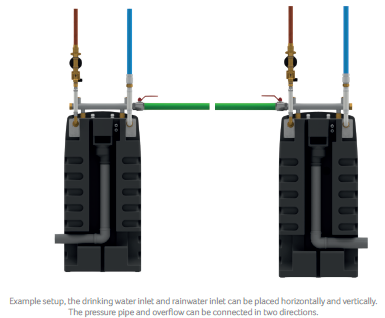

The IRM®-9 Watermanager is a water management system with breaktank and built-in dual multi-stage submersible pumping system. The IRM®-control unit operates according to IOT and monitors the water levels in the breaktank and rainwater tank. The control unit also provides cascade control and operating hours control for the pumps. The direction of the supply and return pipes can be flexibly mounted. In case of lack of rainwater, system failure or manual operation, the system switches over to potable water, via a Type AB interruption, in accordance with EN1717. Belgaqua and KIWA certification is ongoing (02-2025) The drinking water connection is equipped with a water shock absorber for protection of the supply pipes and a stagnation safety device that automatically refreshes the water in the appliance. The control panel of the IRM®-9 Watermanager shows the operating status, pump status, IOT connection status and faults. Optionally there is a potential free contact, which enables connection to home automation and building management systems.

SKU: 402112 / 402113-2113 Categories: ,

Description

Application area

For use of filtered rainwater within utility and commercial buildings. Feeding pumps are necessary, regardless the distance from the rainwater
tank.

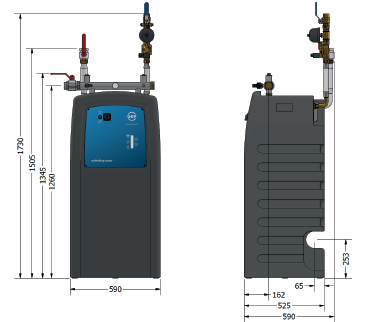

Technical schematic


Options

Automatic time-controlled filter cleaner 1”
The time-controlled filter cleaner enables automatic filter cleaning. The nozzle sprays the filter surface clean at freely adjustable times.

Waterlock 1” incl. detection point
Automatically shuts off the drinking water supply in the event of an overflow alarm to prevent drinking water loss. Allows mounting without
connecting the overflow.

Pressure vessel
Pressure vessels make the switching behaviour of the pumps calmer, which improves the service life and energy consumption of the pumps.

Watermeters
Water meters can be placed on the drinking water pipe and rainwater pipe. Based on that data, the IRM-9 Watermanager indicates the drinking
water consumption, rainwater consumption, total consumption and water savings achieved. These are offered as an option.

IoT / Devicepage

The IRM®- controller is accessible for online monitoring. The devicepage is accessible for current system data, such as water levels and water usage. For the operator, it provides insight into historical data for service and maintenance purposes.

Communication between the IRM®- control and GEP‘s server is based on MQTT.

Scope of delivery

Product consists of: GEP IRM-9 Watermanager 4/3 | GEP IRM-9 Watermanager 4/4 | GEP IRM-9 Watermanager 4/5 | GEP IRM-9 watermanager 100/70 with assembly instructions.

Order Details

Art nr – NAME (PG)
402190 – GEP IRM-9 Watermanager 4/3 (4)
402191 – GEP IRM-9 Watermanager 4/4 (4)
402192 – GEP IRM-9 Watermanager 4/5 (4)
402193 – GEP IRM-9 Watermanager 100/70 (4)


For pressure vessels see the specification sheet of GEP

Additional information

Weight 33 kg
Height in mm:

596 mm
Width in mm:

662 mm
Depth in mm:

365 mm
Drinking water connection (D):

3/4"
Suction pipe (E):

1"
Pressure line F:

3/4"
Emergency overflow F in mm:

diameter 75
Volume breaktank in liter:

7 L
Max. debiet in liter/min

IRM-3: 60 L/min
IRM-5: 90 L/min
Max. Power in Watt:

IRM-3: 1.100 W
IRM-5: 1.350 W
Voltage in Volt:

230 V
Max head in m:

IRM-3: 50 m
IRM-5: 53 m
Number of impellers"

5
Condensator in μF:

IRM-3: 20
IRM-5: 25
