Trident industry basement filter
Description
Application Area

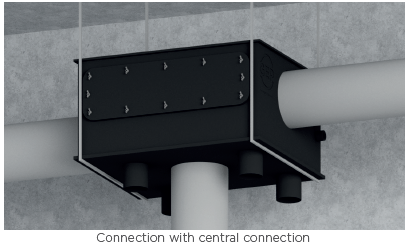

The Trident industry cellar filter is intended to be mounted into a basin or water cellar. The Trident industry cellar filter is suitable for filtering rain water from roofs of buildings with a roof surface up to 10,000 m² (based on 300 litres/sec/ha). Larger models available on request. The Trident industry cellar filter for industrial construction shall be built-in inside or in front of a rain water cellar.
Options
Automatic time-controlled filter cleaner 1/2 ‘’ Time-controlled filter cleaner makes automatic filter cleaning possible. The nozzle sprays the filter surface at freely adjustable times clean.
Technical Overview
Delivery
Product consist of: filter housing, detachable side hatch, Trident filter plate, pre-assembled filter nozzles and assambly manual
Technical Drawings
Order Details
Art nr – NAME (PG)
401270 – Trident 2.000 Basement filter including nozzles (4)
401271 – Trident 3.000 Basement filter including nozzles (4)
401272 – Trident 6.000 Basement filter including nozzles (4)
401273 – Trident 10.000 Basement filter including nozzles (4)
401251 – Automatic time-controlled filter cleaner 1’’ (4)
Additional information
| Length in mm: | Trident 2000 L: 880 mm |
|---|---|
| Width in mm: | Trident 2000 L: 730mm |
| Height in H1 mm: | Trident 2000 L: 555 mm |
| Height H2 in mm: | Trident 2000 L: 141mm |
| Height H3 in mm: | Trident 2000 L: 40mm |
| Height H4 in mm: | Trident 2000 L: 105mm |
| Height difference to the drain in mm: | Trident 2000 L: 101 mm |
| Spray pipe connection: | Trident 2000 L: 1" bi |
| Number of nozzles: | Trident 2000 L: 4 |
| Minimale debiet sproeiers in L/min: | Trident 2000 L: 57 l/min |
| Minimum flow rate nozzles in L / min: | Trident 2000 L: 250 l/min |

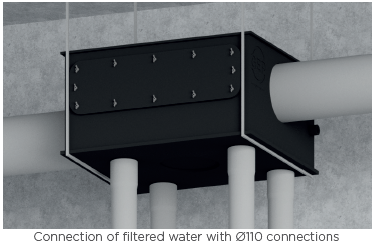

| Connection OFF clean water in mm: | Trident 2000 L: 4 x 110 mm |
| Connection from clean water * in mm: * Connection must be milled open. | Trident 2000 L: 250 mm |
| Weight in kg | Trident 2000 L: ca. 37 kg |
| Connection IN / OUT in mm: | Trident 2000 L: 250mm |
