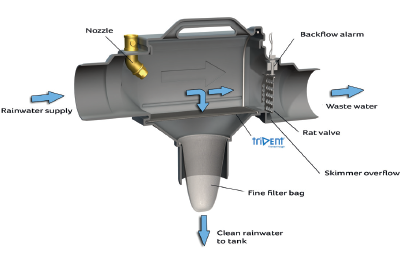

Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting
Trident tank filter (150m². 325m² or 450m²)
Description
Application Area

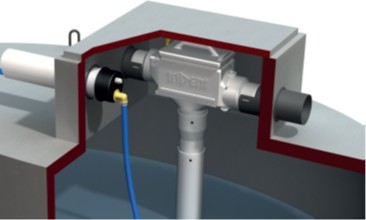

The Trident tank filters are supposed to be built into a tank or rain water borehole. The Trident tank filters are suitable for filtering rain water from house roofs or buildings with a roof surface up to 450 m2 (based on 300 litres/sec/ha). There are 3 different types available, that distinguish themselves by their connection diameters of Ø 110, Ø 125 or Ø 160. The filters must be installed in a cistern or attached to a top unit between the supply and discharge of a cistern.

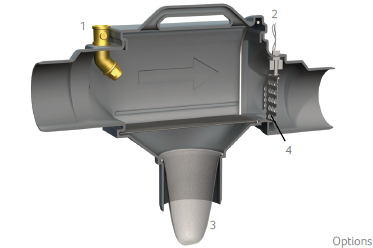

Options
Nozzle set for Trident 150, 325 and 450 tank filter.
Allows easy and automatic cleaning of the filter. The nozzle cleans the filter surface by means of water pressure via a special powerful brass cone nozzle (see 1).
Automatic time-controlled filter cleaner 1/2 ‘’. Time-controlled filter cleaner makes automatic filter cleaning possible. The nozzle sprays the filter surface at freely adjustable times clean.
Fine filter bag
The fine filter bag can be placed under the Trident filter plate. The fine filter bag filters very finely to a mesh size of 150 μm. This fine filter can be used in places where high demands are placed on the water quality. (see 2)
Backflow alarm for Trident filters
The filter can be equipped with an alarm sensor that flows back from the overflow signals. This alarm sensor can be connected on an IRM rainwater system that switches to drinking water as an alarm signal comes from the sensor. This will contaminate sanitary appliances, pump and pipes (see 3).
Rat valve stainless steel
Stainless steel rat valve can be used in the Trident 150 and 325 tank filter be edited. Prevents ingress of vermin from the overflow to sewer or surface water.
Check valve for Trident 150 tank filter
Valve to place behind the filter in the drain. Plug-in model, suitable for 110 mm pipe pieces. Reduced the risk of backstopping from the overflow towards the tank. Material polypropylene black, provided of flexible rubber
lining.
Technical Overview
Delivery
Product consists of: filter housing, fliterbox, Trident filter grill, removal bracket and installation instructions.
Order Details
Art nr – NAME (PG)
401122 – Trident 150 tank filter with skimmer overflow (2)
401123 – Trident 325 tank filter with skimmer overflow (2)
401145 – Trident 450 tank filter with skimmer overflow (2)
401151 – Nozzle set for Trident 150, 325 and 450 tank filter (2)
401155 – Automatic time-controlled filter cleaner 1/2’’ (2)
401157 – Fine filter bag (2)
401162 – Trident 150 click connection set 110 mm (2)
401163 – Trident 325 click connection set 125 mm (2)
401164 – Trident 450 click connection set 160 mm (2)
401158 – Backflow alarm for Trident filters (2)
401156 – Rat valve stainless steel (2)
401165 – Check valve for Trident 150 tank filter (2)

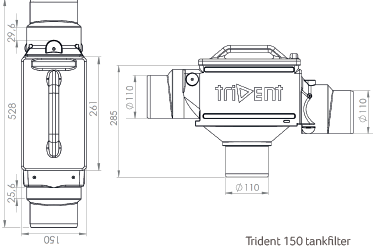

Additional information
| Height in mm: | 150: 285 mm |
|---|---|
| Width in mm: | 150: 150 mm |
| Length in mm: | 150: 528 mm |
| Height difference of the supply in mm: | 150: 39 mm |
| Connection waste water in/out in mm: | 150: 110 mm |
| Clean water out in mm: | 150: 110 mm |
| Size of cover in cm: | 150: 26 x 13 cm |
| Material housing: | PE |
| Material filter grid: | RVS |
| Connection filter cleaner (optional): | 150: 1/2” |
| Weight in kg | 150: ca. 1 kg |
