Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting
Varitank filter 450m²
Description
Application Area

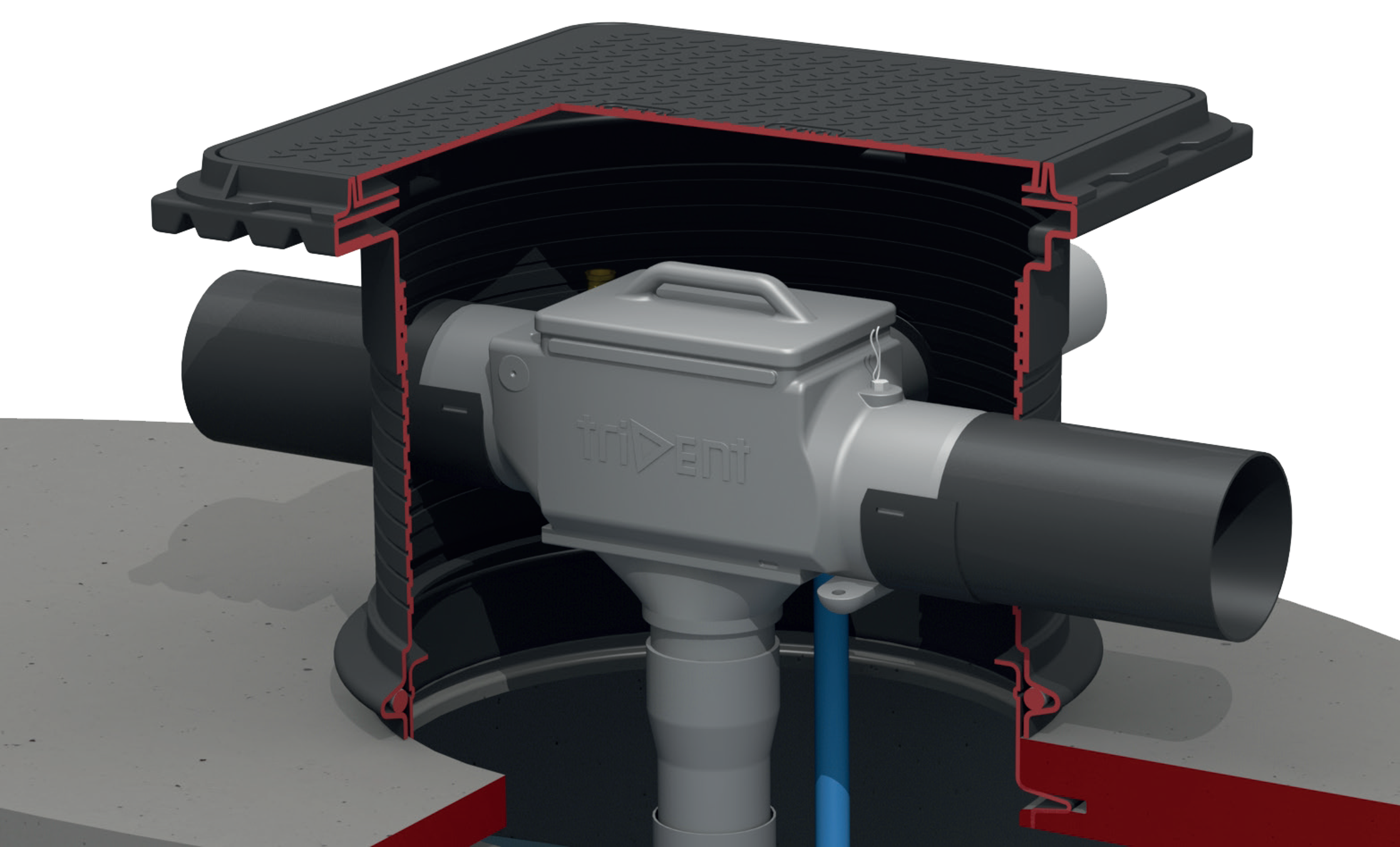

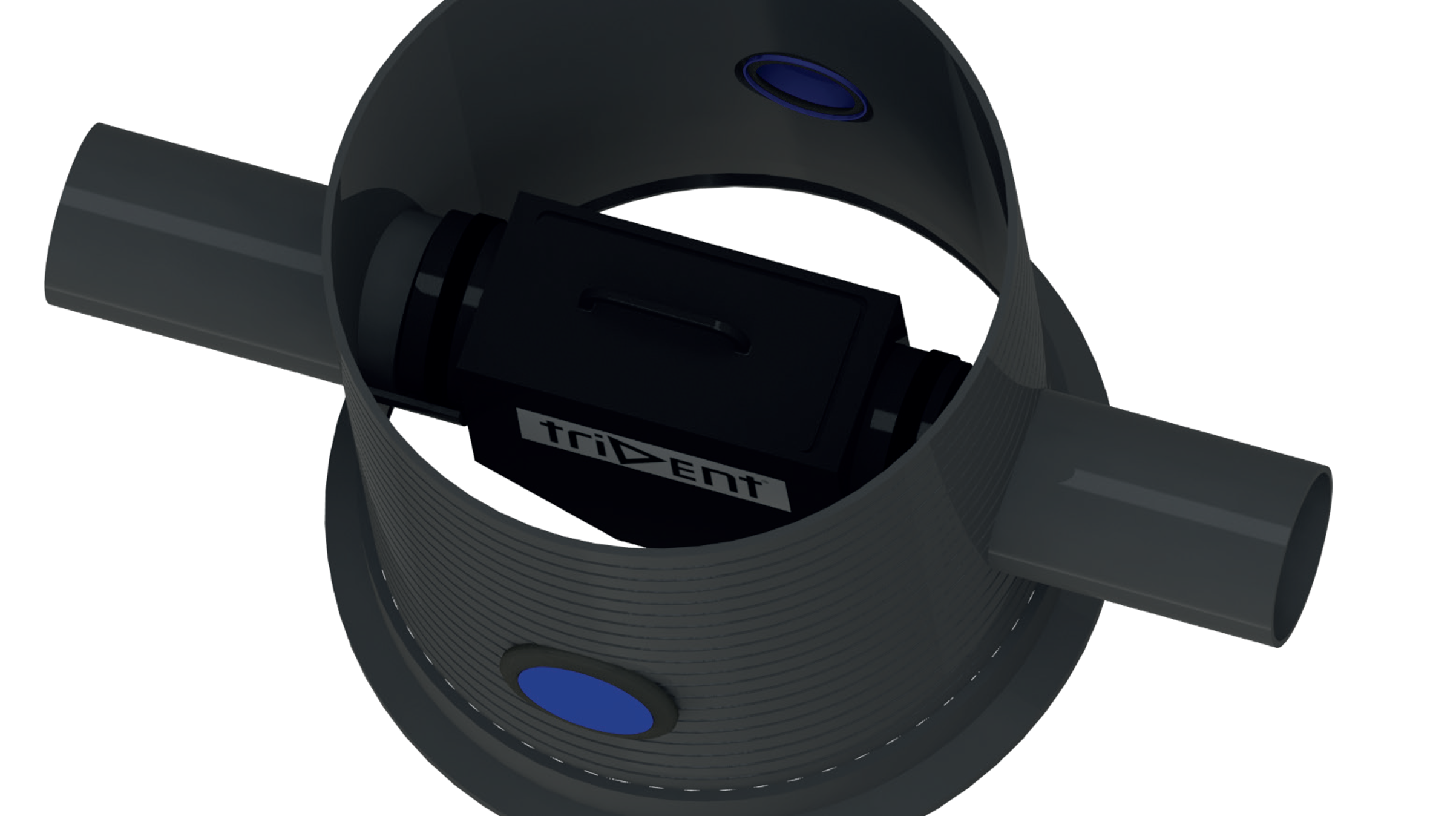

The Trident tank filter is suitable for filtering rain water from roofs of homes or buildings with a roof surface up to 450 m² (based on 300 litres/ sec/ha). There are different tanks which the Trident tank filter is suitable for; the blueline, flatline, neo-line and flexo-line tanks. The filter shaft is applied to the synthetic frill of the borehole and sealed with a rubber ring. The shaft is 360 degrees rotatable to ease the connection of the pipe system and can be shortened at any height or raised by use of the PE shaft extension. The decline between the supply and discharge of the filtered rain water is 40 mm.
Options
Nozzle set for Trident 150, 325 and 450 tank filter
Allows easy and automatic cleaning of the filter. The nozzle cleans the filter surface by means of water pressure via a special powerful brass cone nozzle.
Automatic time-controlled filter cleaner 1/2 ‘’
Time-controlled filter cleaner makes automatic filter cleaning possible. The nozzle sprays the filter surface at freely adjustable times clean.
Fine filter bag
The fine filter bag can be placed under the Trident filter plate. The fine filter bag filters very finely to a mesh size of 150 μm. This fine filter can be used in places where high demands are placed on the water quality.
Backflow alarm for Trident filters
The filter can be equipped with an alarm sensor that flows back from the overflow signals. This alarm sensor can be connected on an IRM rainwater system that switches to drinking water as an alarm signal comes from the sensor. This will contaminate sanitary appliances, pump and pipes.
Varitank shaft extension 60 cm

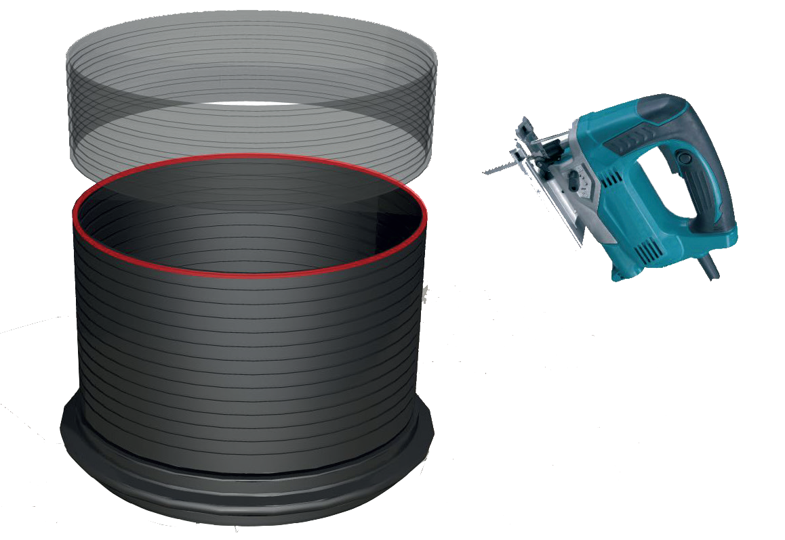

The shaft extension with seal ring can be mounted on the filter shaft. The shaft can be easaly shortened. In this way every Varitank cover can made on the desired height, equated to the ground level.
Varitank cover set

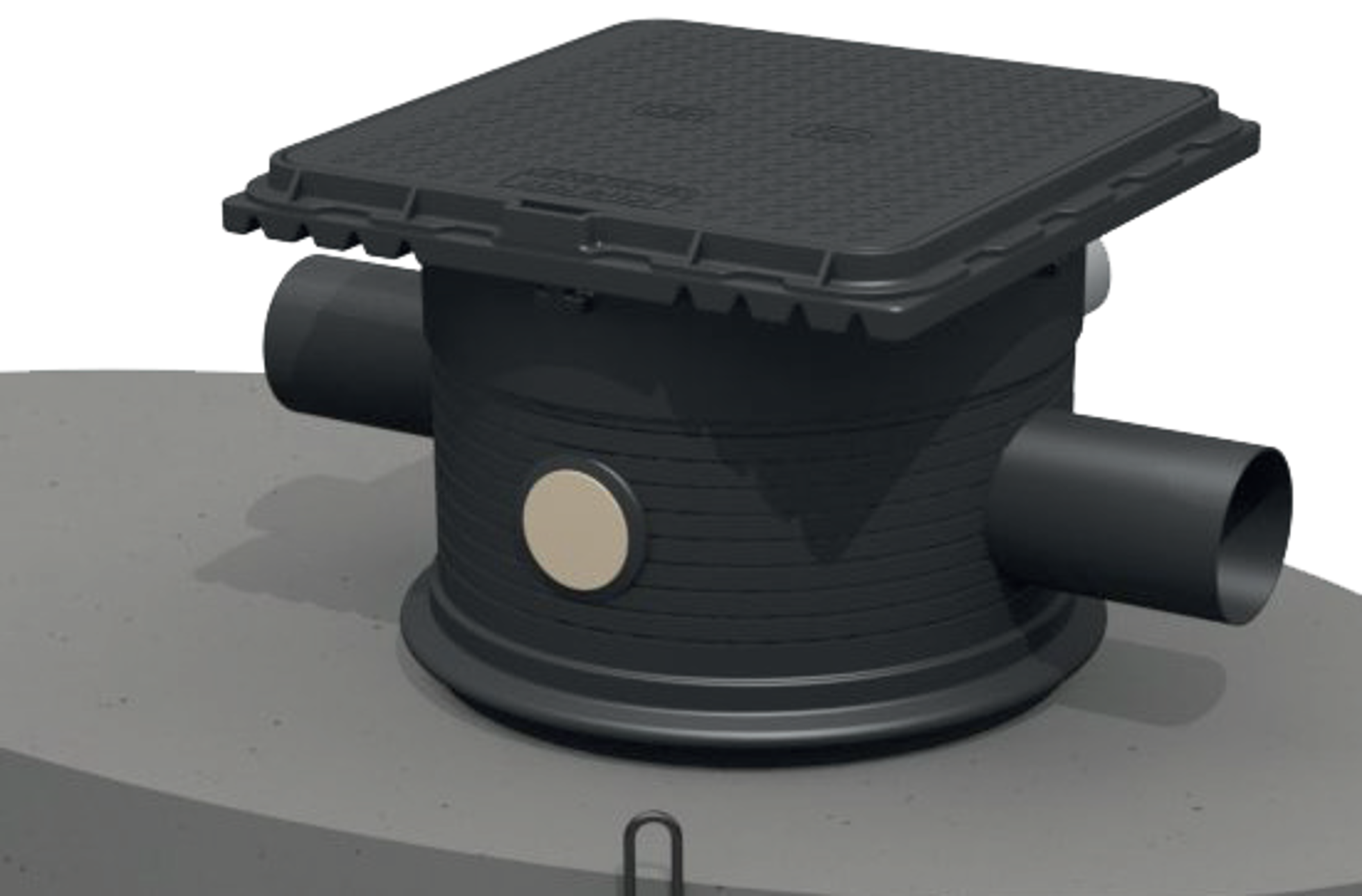

For every Varitank filter is a wide range of covers available in traffic class A, B en D. See the special Varitank cover pages to choose your suitable cover.
Technical Overview
Delivery
Product consists of: filter shaft with 4 connections, filter box fitted with cover, Trident filter plate with removal bracket, gentle supply, PVC scovering piece, rubber sealing ring of 25 mm, including lubricant, 6x push in rivet, two snap connections (preinstalled), two clamping strips with Velcro and assembly manual.
Order Details
Art nr – NAME (PG)
401168 – Varitank 450 filterschacht (3)
401152 – Nozzle connection set 150,325 and 450 (2)
401155 – Automatic time-controlled filter cleaner 1/2’’ (2)
401157 – Fine filter bag (2)
401158 – Backflow alarm for Trident filters (2)
403512 – Varitank inner shaft 60 cm (3)
Wide range of covers available, see Varitank covers from GEP.
Additional information

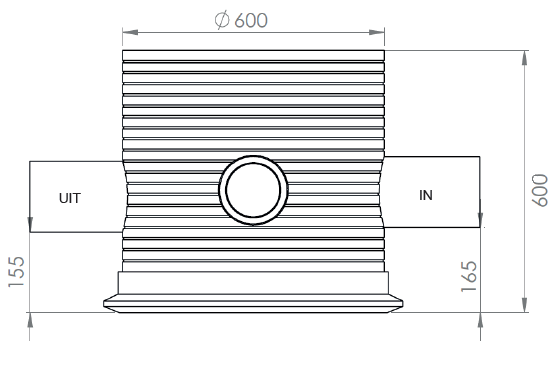

| Weight | 20 kg |
|---|---|
| Height IN mm: | 165 |
| Height OUT mm: | 155 |
| Connectio IN in mm: | 160 |
| Connection UIT in mm: | 160 |
| Connection of casing in mm: | 2 x 110 |
| Height difference of the supply in mm: | 39 |
| Manhole cross section in mm: | 600 |
| Max. roof area in m2: | 450 |
| Material housing: | PE |
| Material filter grid: | RVS |
| Connection filter cleaner (optional): | 1/2” |
