Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting

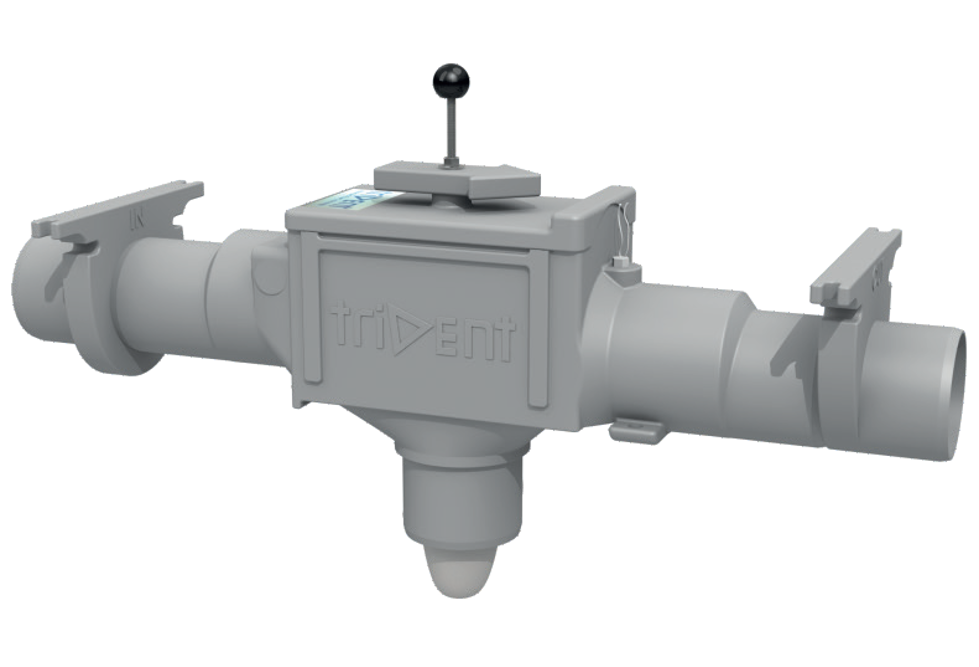

Trident cone filter
Description
Application Area

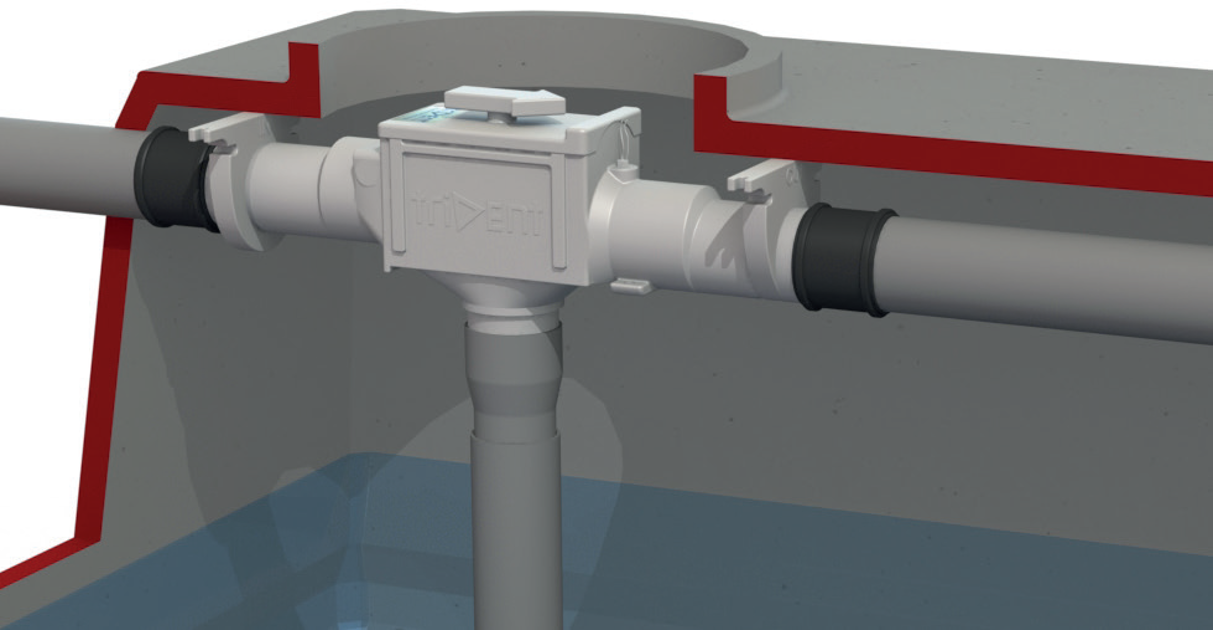

The Trident cone filter is supposed to be attached to the cover plate in a rain water borehole. The Trident cone filter is suitable for filtering rain water from roofs of homes or buildings with a roof surface up to 150 m2 (based on 300 litres/sec/ha). Has a connecting diameter of Ø 110 and is provided with mounting brackets. The Trident cone filter must be built into a rain borehole and is, as such, not resistant to soil pressure. The filter box is detachable for the purpose of inspecting the filter plate.

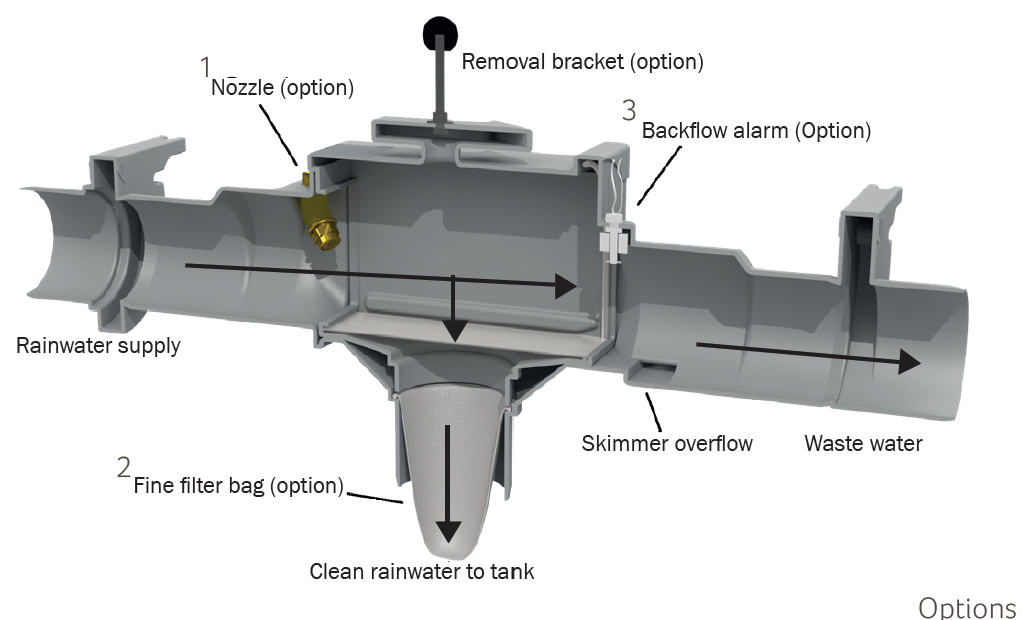

Options
Nozzle set for Trident 150, 325 and 450 tank filter
Allows easy and automatic cleaning of the filter. The nozzle cleans the filter surface by means of water pressure via a special powerful brass cone nozzle (see 1).
Automatic time-controlled filter cleaner 1/2 ‘’
Time-controlled filter cleaner makes automatic filter cleaning possible. The nozzle sprays the filter surface at freely adjustable times clean.
Fine filter bag
The fine filter bag can be placed under the Trident filter plate. The fine filter bag filters very finely to a mesh size of 150 μm. This fine filter can be used in places where high demands are placed on the water quality. (see 2)
Backflow alarm for Trident filters
The filter can be equipped with an alarm sensor that flows back from the overflow signals. This alarm sensor can be connected on an IRM rainwater system that switches to drinking water as an alarm signal comes from the
sensor. This will contaminate sanitary appliances, pump and pipes (see 3).
Rat valve stainless steel
Stainless steel rat valve can be used in the Trident 150 and 325 tank filter. be edited. Prevents ingress of vermin from the overflow to sewer or surface water.

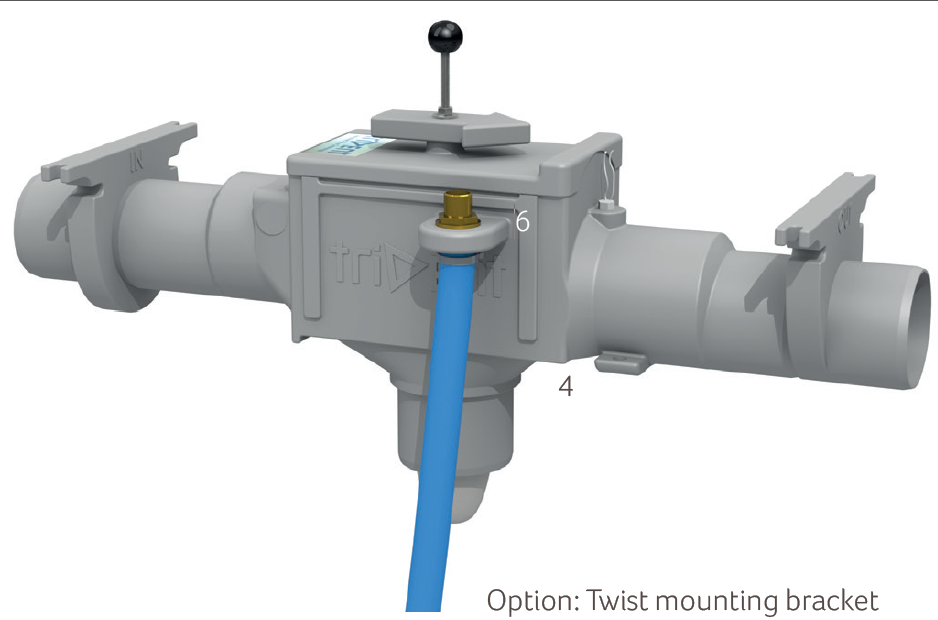

Twist mounting bracket
The filter can be supplied with a bracket for mounting a floating suction.
Technical Overview
Delivery
Product consist of: filter housing, filterbox, Trident filter grill with removal bracket and installation instructions.
Order Details
Art nr – NAME (PG)
401127 – Trident 150 cone filter with skimmer overflow (2)
401131 – Trident 150 cone filter with Twist mounting bracket (2)
401151 – Nozzle set for Trident 150, 325 and 450 tank filter (2)
401155 – Automatic time-controlled filter cleaner 1/2’’ (2)
401157 – Fine filter bag (2)
401158 – Backflow alarm for Trident filters (2)
401369 – Removal bracket for filterbox (2)
401162 – Trident 150 click connection set 110 mm (2)
401165 – Check valve for Trident 150 tank filter (2)
Wide range of covers available, see Varitank covers from GEP.
Additional information

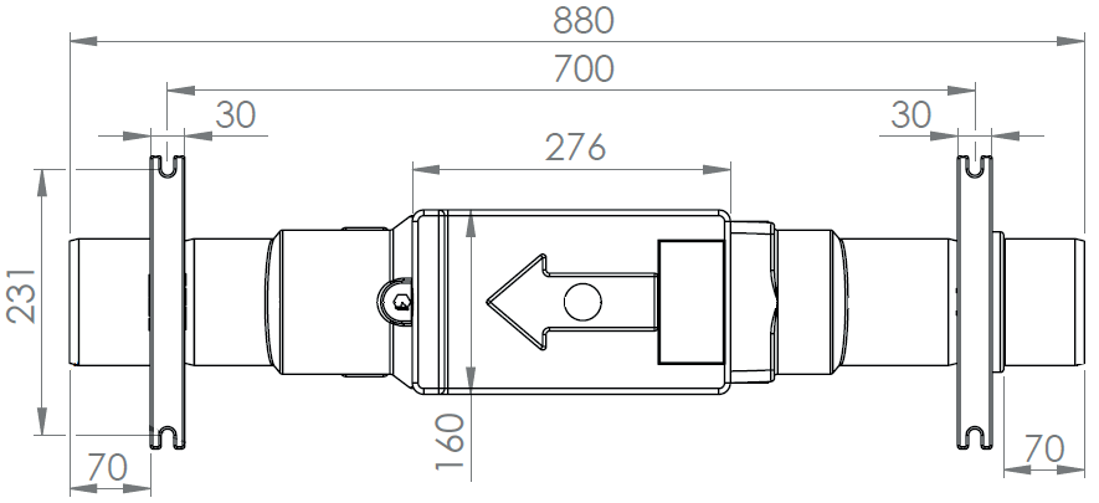

| Weight | 3.2 kg |
|---|---|
| Height in mm: | 335 |
| Width in mm: | 231 |
| Length in mm: | 880 |

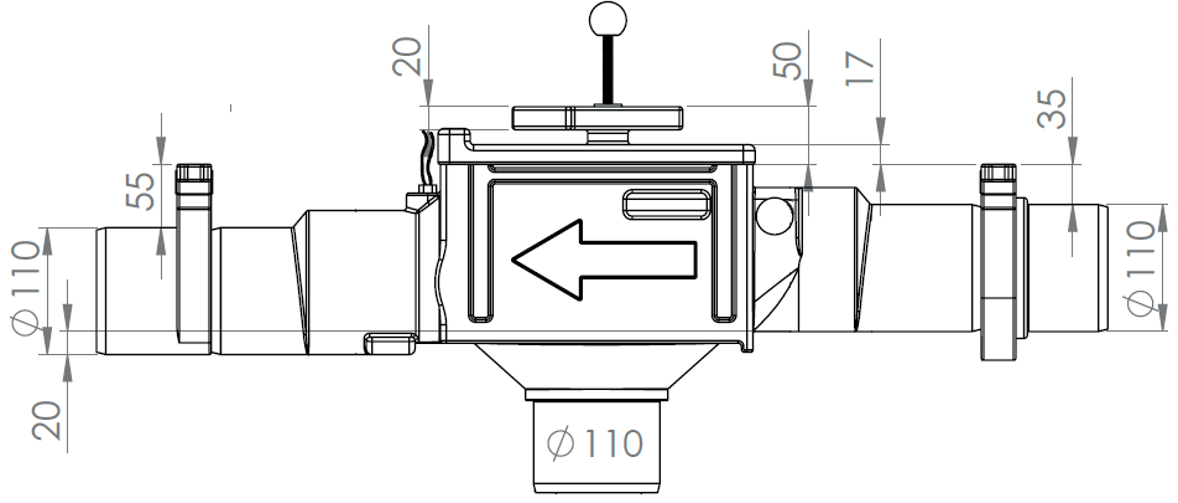

| Height difference of the supply in mm: | 20 |
| Connection waste water in/out in mm: | 110 |
| Clear water out in mm: | 110 |
| Opening with cover in cm: | 27 x 16 |
| Material housing: | PE |
| Material filter grid: | RVS |
| Connection filter cleaner (optional): | 1/2” |
