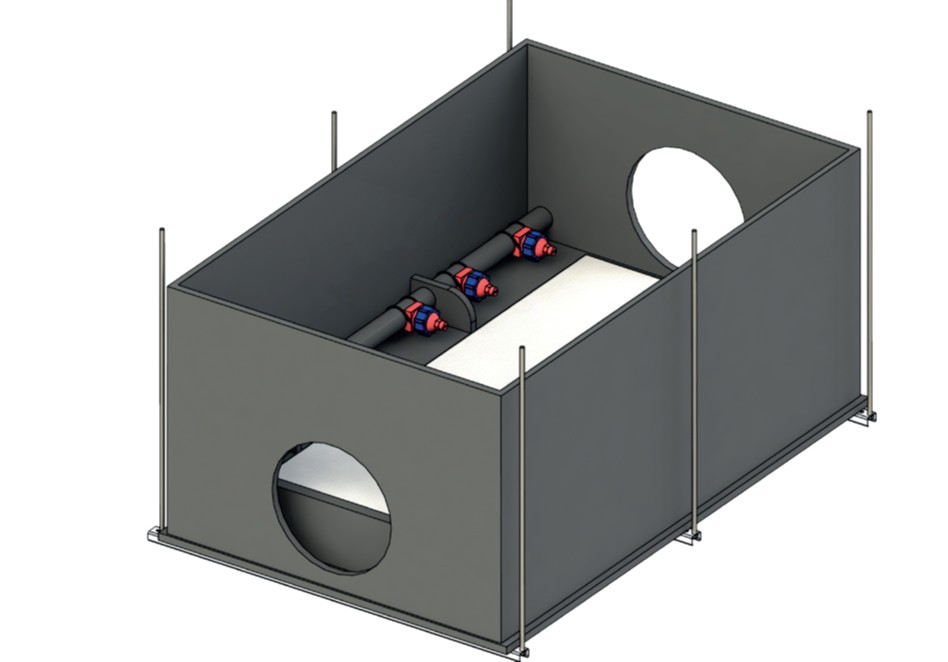

Trident industry filters

Trident filters are a highly efficient dynamic rainwater filter, ensuring that a maximum volume of water passes through the filter and into the tank. The filter acts as the first step in the rainwater treatment process and has the capability to reduce the overall lifetime cost of the entire rainwater harvesting system. With a range of pre-tank filters and tank filters with skimmers, Trident filters are flexible to suit in almost any tank; improving tank life, reducing maintenance and capable of handling high volume harvesting needs. • +90% Efficiency 700μm • Rapid separation of waste and clean water • Dirt resistant and large effective filter grid • Automatic cleaning reduces maintenance required • Ideal for rainwater harvesting

SKU: 401202 - 401203 - 401204 - 401205 Categories: Waterfilters, Tankfilters

Description
Additional information

Description

Application Area

The Trident industry filters are intended for installation in a rain water borehole, water cellar or basin. The Trident industry filters are suitable for filtering rain water from roofs of buildings with a roof surface up to 10,000 m² (based on 300 litres/sec/ha). Larger models available on request.

Options

Automatic time-controlled filter cleaner 1/2 ‘’ Time-controlled filter cleaner makes automatic filter cleaning possible.
The nozzle sprays the filter surface at freely adjustable times clean.

Connection set Trident filter bucket.
The connection set consists of a pre-connected flexible hose with a 1” 3-piece connection. The 1” pipe from the building can be mounted to it directly. (see 1).

Technical Drawings

Delivery

Product consists of: filter housing, fliterbox, Trident filter grill, removal bracket and installation instructions.

Order Details

Art nr – NAME (PG)

401202 – Trident 2.000 filter including nozzles (4)
401203 – Trident 3.000 filter including nozzles (4)
401204 – Trident 6.000 filter including nozzles (4)
401205 – Trident 10.000 filter including nozzles (4)
401251 – Automatic time-controlled filter cleaner 1’’ (2)
401253 – Connection set Trident filter tray (4)

Additional information

Length in mm:	Trident 2000 L: 880 mm Trident 3000 L: 1130 mm Trident 6000 L: 1600 mm Trident 10.000 L: 2310 mm
Width in mm:	Trident 2000 L: 730mm Trident 3000 L: 730 mm Trident 6000 L: 600 mm Trident 10.000 L: 860 mm
Height in H1 mm:	Trident 2000 L: 545mm Trident 3000 L: 590 mm Trident 6000 L: 720 mm Trident 10.000 L: 835 mm
Height H2 in mm:	Trident 2000 L: 141mm Trident 3000 L: 141 mm Trident 6000 L: 141 mm Trident 10.000 L: 141 mm
Height H3 in mm:	Trident 2000 L: 40mm Trident 3000 L: 40 mm Trident 6000 L: 40 mm Trident 10.000 L: 40 mm
Height H4 in mm:	Trident 2000 L: 105mm Trident 3000 L: 105 mm Trident 6000 L: 105 mm Trident 10.000 L: 105 mm
Height difference to the drain in mm:	Trident 2000 L: 101 mm Trident 3000 L: 101 mm Trident 6000 L: 101 mm Trident 10.000 L: 101 mm
Spray pipe connection:	Trident 2000 L: 1" Trident 3000 L: 1" Trident 6000 L: 1" Trident 10.000 L: 1"
Number of nozzles:	Trident 2000 L: 4 Trident 3000 L: 5 Trident 6000 L: 7 Trident 10.000 L: 8
Minimale debiet sproeiers in L/min:	Trident 2000 L: 57 l/min Trident 3000 L: 69 l/min Trident 6000 L: 97 l/min Trident 10.000 L: 125 l/min
Minimum flow rate nozzles in L / min:	Trident 2000 L: 250 l/min Trident 3000 L: 315 l/min Trident 6000 L: 400 l/min Trident 10.000 L: 500 l/min
Connection from clean water 3 in mm:	Trident 2000 L: 4 x 110 mm Trident 3000 L: 4 x 110 mm Trident 6000 L: 6 x 110 mm Trident 10.000 L: 8 x 110 mm
Connection of clean water DN4 in mm * * Connection must be milled open	Trident 2000 L: 250 mm Trident 3000 L: 250 mm Trident 6000 L: 315 mm Trident 10.000 L: 500 mm
Weight in kg	Trident 2000 L: ca. 32 kg Trident 3000 L: ca. 39 kg Trident 6000 L: ca. 47 kg Trident 10.000 L: ca. 74 kg
